API Testing Tool

Project Overview

EndpointX is a modern, web-based API testing application designed to provide a seamless and professional experience similar to industry-standard tools like Postman and Thunder Client. It allows developers to send HTTP requests, inspect responses, and manage request history through a clean, dark-themed user interface.

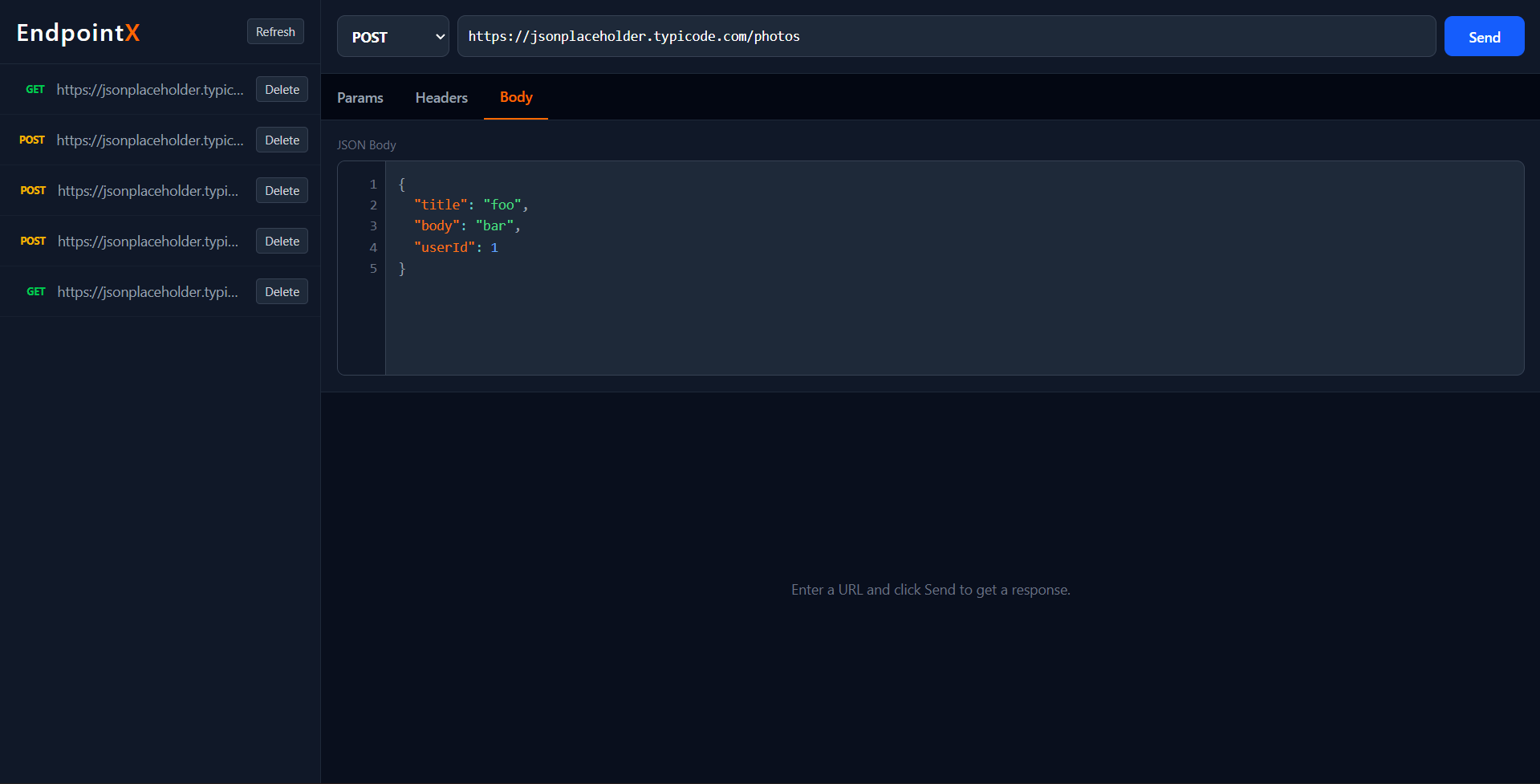

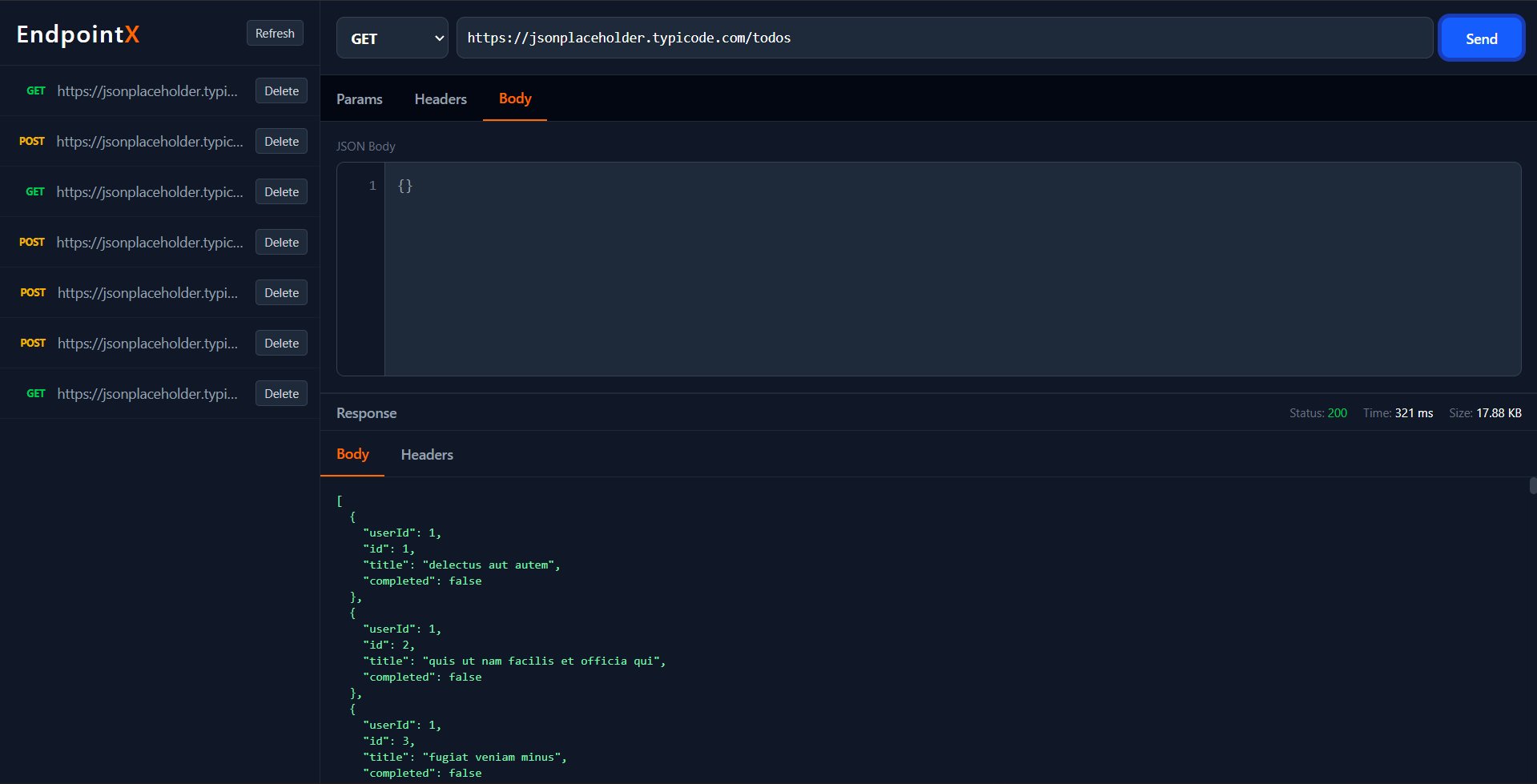

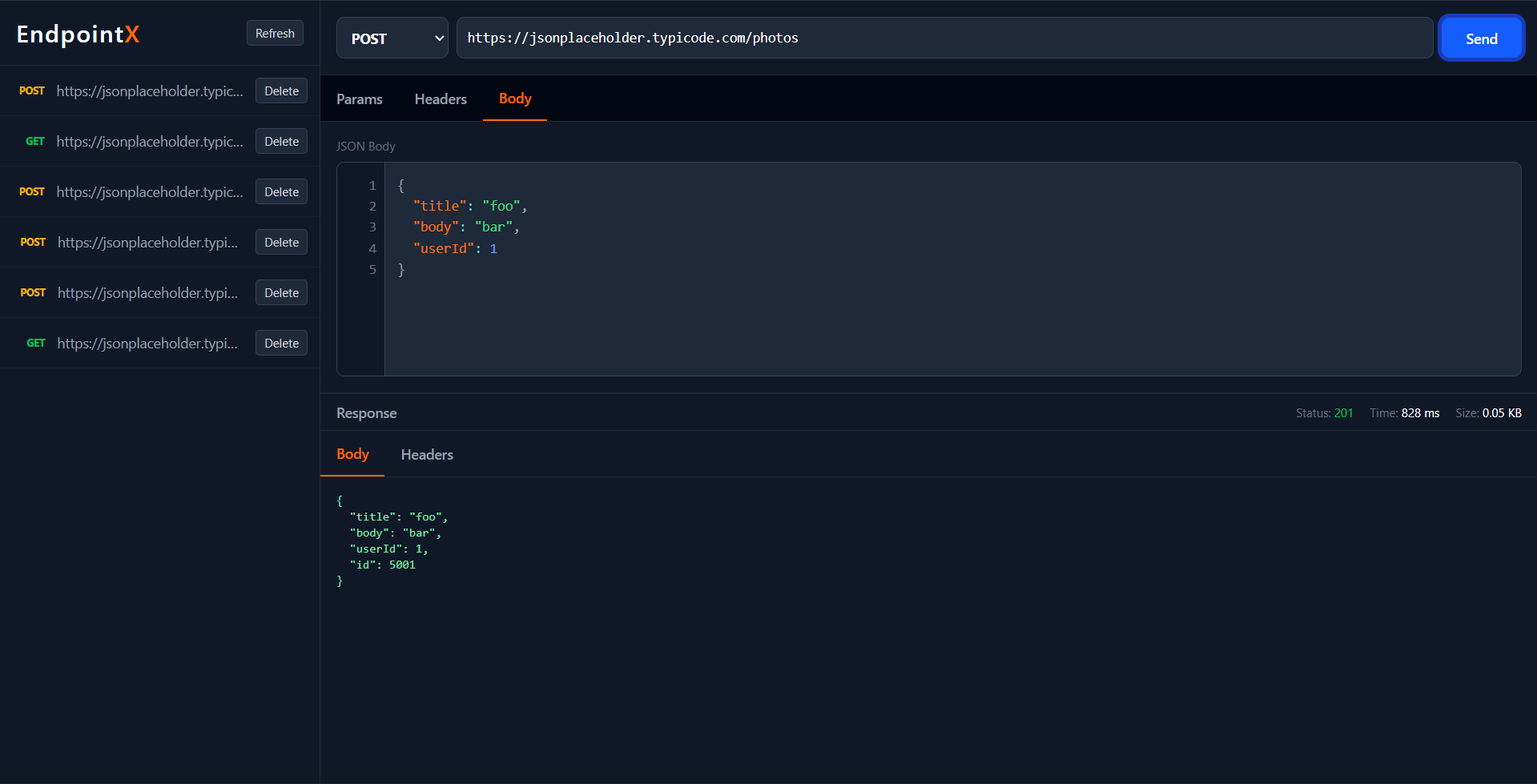

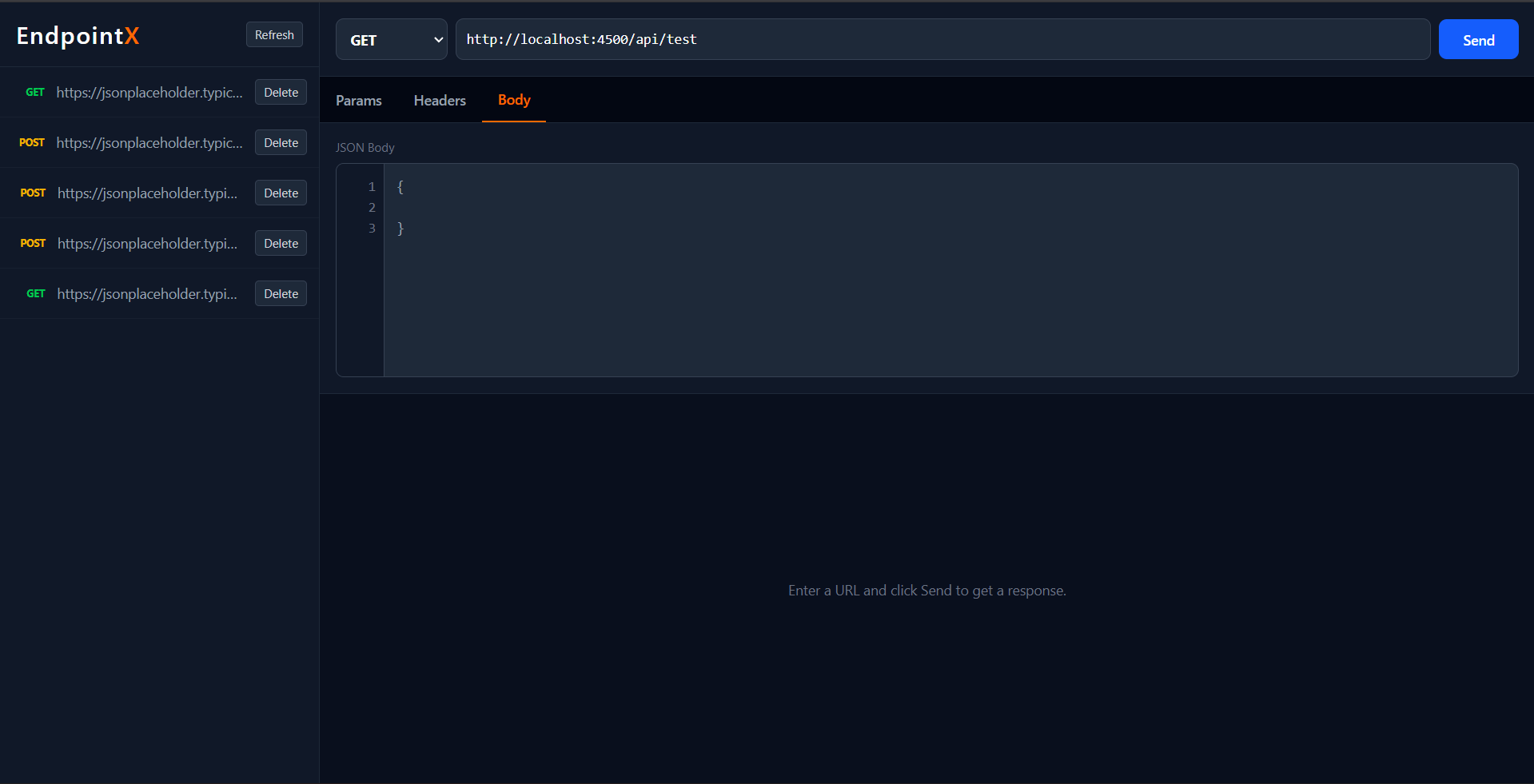

Screenshots

Key Features

Intuitive UI: A 3-pane layout featuring a Sidebar (History), Request Panel, and Response Panel.
Method Support: Supports standard HTTP methods: GET, POST, PUT, DELETE, PATCH.
JSON Editor: Integrated code editor with syntax highlighting (PrismJS) and line numbers for easy JSON manipulation.
Response Metrics: Automatically calculates and displays response time (ms), size (KB), and status code.
History Management: Automatically saves requests to a history list. Users can revisit previous requests or delete them.
Dark Mode: A professional, high-contrast dark theme optimized for long coding sessions.

Functionality

Request Composition: Users can manually enter an API URL, select an HTTP method (GET, POST, PUT, DELETE, PATCH), and provide a JSON body for the request.
Response Analysis: The application displays the response status code, execution time, and response size. The response body is strictly formatted for readability.
History Tracking: Every request sent is automatically saved to the history sidebar. Users can click on any history item to reload the request details into the editor.
Request Management: Users can delete individual requests from the history to maintain a clean workspace.
Syntax Safety: The JSON editor provides real-time syntax highlighting and line numbers, helping users avoid format errors in their request bodies.

Technology Used

Frontend:
- Framework: React (Vite)
- Styling: Tailwind CSS (v4)
- HTTP Client: Axios
- Code Editor: `react-simple-code-editor` + `prismjs`
Backend:
- Runtime: Node.js
- Framework: Express.js
- Database: MongoDB (via Mongoose)
- Proxy: Uses a backend proxy to handle CORS and request forwarding.

Why This Project Is Useful

Backend Developers: Quickly testing API endpoints during development without switching contexts.
Frontend Developers: DebuggingAPI integrations and inspecting response structures.
QA Engineers: verifying API behavior and performance metrics.
Learning: serving as a practical example of building a full-stack developer tool with a complex UI state.

Deployment and Environment Setup

Environment Variables Setup:
- backend/.env
  - PORT: 5000
  - MONGO_URI: mongodb_url_string
  - JWT_SECRET: your_jwt_secret_key_here (if needed)
- frontend/.env
  - VITE_API_URL: backend_url
Deployment Overview:
- Render or Railway for backend hosting
- Vercel or Netlify for frontend hosting
- MongoDB Atlas for the database
Backend Deployment:
- Push your code to GitHub.
- Go to Render.com or Railway.app.
- Create a new Web Service and connect your GitHub repository.
- Choose “backend/” as the root directory.
- Add the following environment variables on Render:
- PORT=10000
- MONGO_URI=your MongoDB Atlas URI
- JWT_SECRET=your JWT secret
- Start command: npm start (Ensure your backend/package.json includes “start”: “node server.js”)
- After deployment, note your backend URL, e.g. https://your-backend-name.onrender.com
Frontend Deployment:
- Go to Vercel.com or Netlify.com.
- Create a new project and connect the GitHub repo.
- Select the “frontend/” folder as root.
- In environment variables, set:
- VITE_API_URL=https://your-backend-domain.com/api (or REACT_APP_API_URL if using CRA)
- Deploy.
MongoDB Atlas Setup:
- Go to https://cloud.mongodb.com
- Create a free cluster.
- Add your current IP address in Network Access.
- Create a database user and password.
- Copy the connection string and replace username, password, and database name in MONGO_URI in backend/.env
